BIS Certified PCAP 17 Inch Touch Monitor With Peep Proof Film
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Display Type | 5:4 Ratio 17" TFT-LCD | Active Area | 337.9*270.3(mm) |
|---|---|---|---|
| Resolution | 1280×1024 @ 60Hz | Support Colors | 16.7M |
| Response Time (Typ.) | 5ms | Contrast Ratio (Typ.) | 1000:1 |
| Video Input | VGA/DVI | Frequency (H/V) | 37.9～80KHz / 60～75Hz |
| Input (line) Voltage | 100-240 V/AC, 50-60 Hz | Warranty | One Year |
| High Light | ODM 17 Inch Touch Monitor,BIS Certified PCAP Touch Monitor,Peep Proof Film PCAP Touch Monitor | ||
Product Description

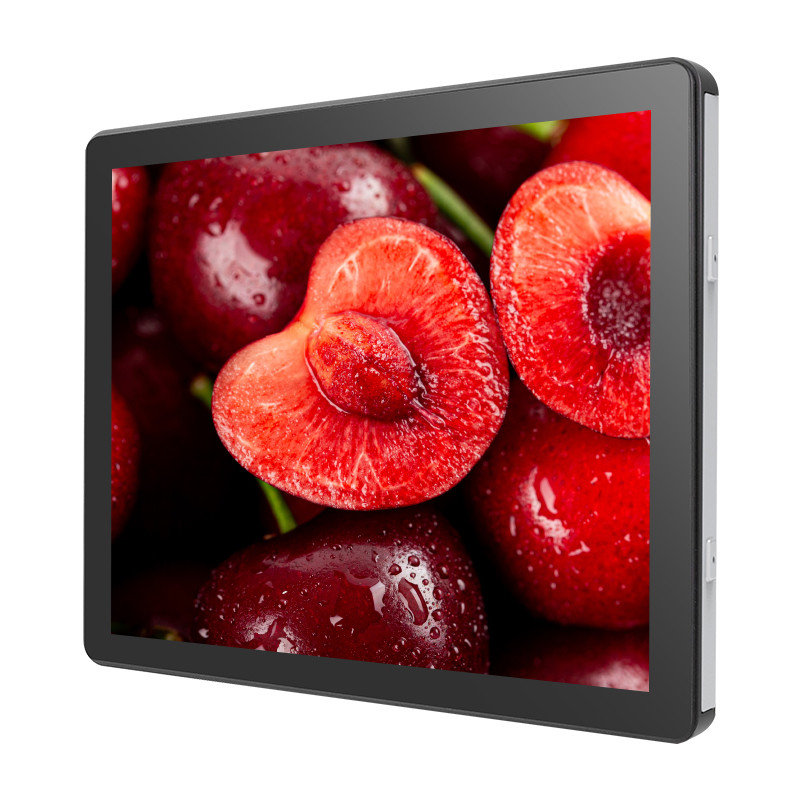

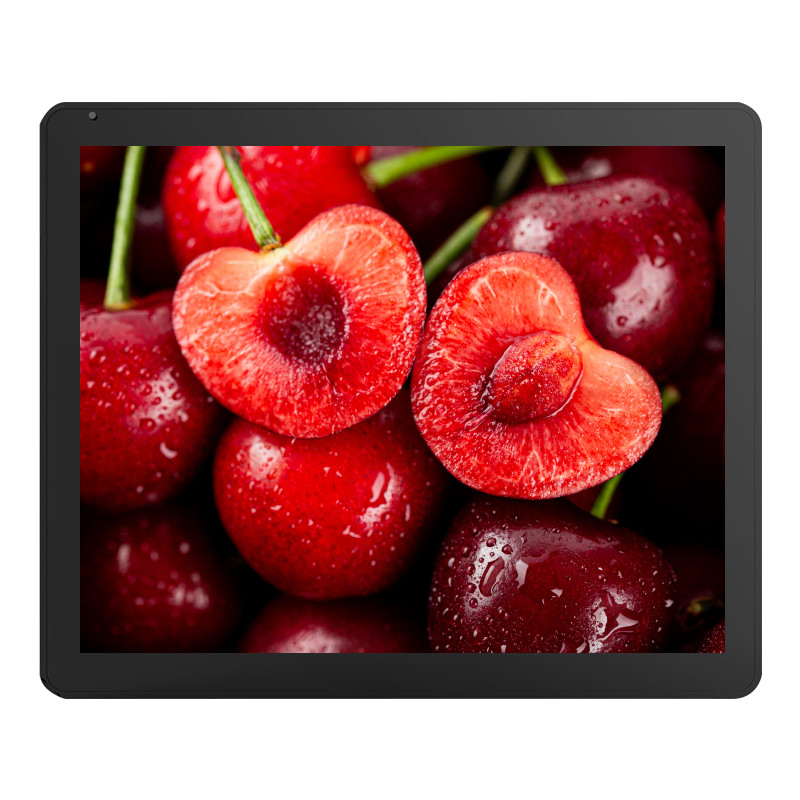

17 Inch PCAP Touch Monitor With Peep-Proof Film
PCAP Touch Monitor Main Features
With PCAP touch screen, fast response and great touch experience1280x1024 high resolution, 1000:1 high contrast with high image qualityAnti-glare, vandal-proof and IP65 waterproof PCAP touch monitorVGA&DVI interfaces, USB port for touchWith peep-proof protection film and sun protection filmMultiple mounting options include VESA mount, horizontal and vertical brackets mountOperation system: XP, WIN7, WIN8, WIN10, Linux, AndroidOther sizes can be offered (7"- 43").
PCAP Touch Monitor Specifications
Complete Machine | ||
Model No. | KOT-0170U-CA4P (P/N:KOT-170P-023) | |
Series | OT | |
Display Type | 5:4 Ratio 17" TFT-LCD | |
Active Area | 337.9*270.3(mm) | |
Monitor Dimensions (W*H*D) | 395.3*327.7*59.2(mm) | |
Suggested Resolution | 1280*1024 @ 60Hz | |
Support Colors | 16.7M | |
Brightness (Typ.) | Pure LCD Panel | 400cd/㎡ |
With Touch Monitor | 145cd/㎡ | |
Response Time (Typ.) | 5ms | |
Viewing Angle(Typ.at CR＞10)） | Horizontal(left/right) | 85°/85° |
Vertical(up/down) | 80°/80° | |
Contrast Ratio (Typ.) | 1000:1 | |
Frequency (H/V) | 37.9～80KHz / 60～75Hz | |
Power Supply | Type: External brick Display voltage: DC 12V 3A±5% Input (line) voltage: 100-240 V/AC, 50-60 Hz Power Adapter DC Head Inner Diameter:2.1mm | |
Environment | Operating Temp. | 0～50°C |
Operating RH | 20%～80% | |
Storage Temp. | -20～60°C | |
Storage RH | 10%～90% | |
MTBF | ≥30,000 Hours | |
LED Back Light Life (Typ.) | ≥30,000 Hours | |
Weight（N.W/G.W） | 4.65Kg(1pcs)/10.25Kg(2 pcs in one package) | |
Package dimensions | 466*185*403(mm)(2 pcs in one package) | |
Power Consumption | Standby Power: ≤0.82W / Operating Power: ≤7.3W | |

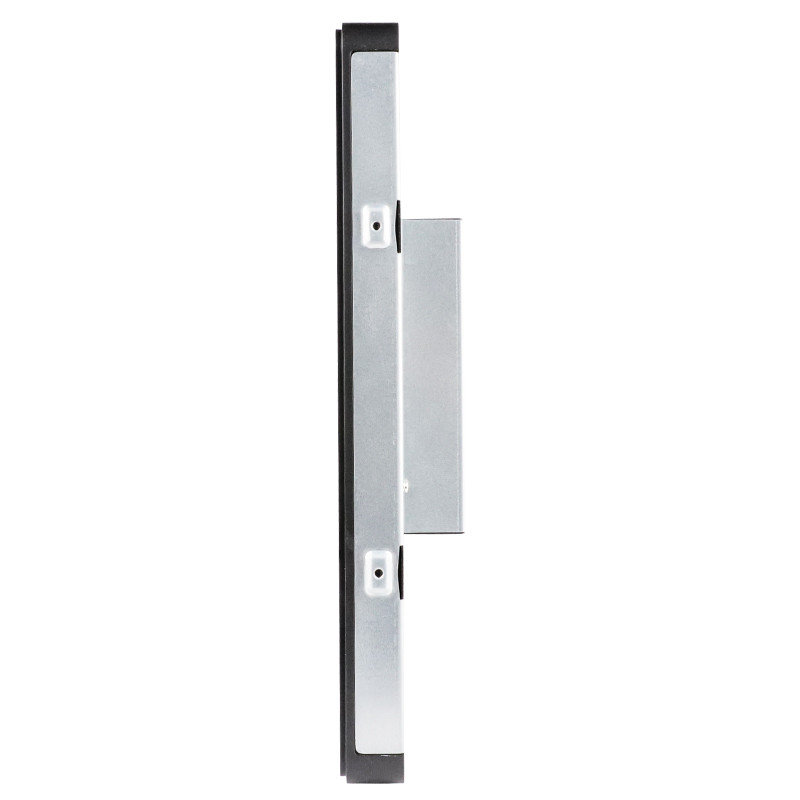

Mount Interface | 1. VESA 75mm 2. Mount bracket, horizontal or vertical mount | |

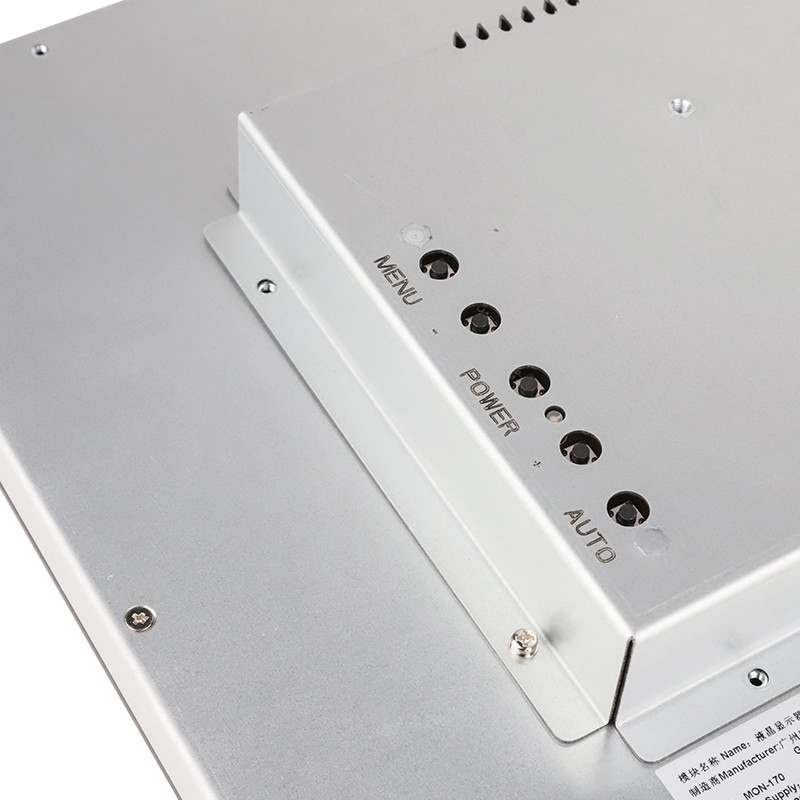

OSD Control | Buttons | AUTO,+,POWER,-,MENU |
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
CCC, UL, FCC, CE, CB, RoHS | ||
Regular Warranty | 1 year | |
Touch Screen | |
Touch Type | 17" Capacitive touch screens |
Touch input | USB |
Response Time | ≤10ms |
Hardness | 6H |
Light Transmittance | ≥83% |
Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
Active Area | 340.92*273.34(mm) |
Thickness | 3.9±0.3(mm) |
Touch Test | ≥50,000,000 次 |
Input Voltage | DC 5V±5% |
NOTE :
① The display SPEC. are adjusted according to the selected LCD screen and touch screen
② The support system is adjusted according the specific system and version.
Peep-proof protection film | |
Type | Peep-proof protection film |
Guard against peep angle | Horizontal(left/right) 40°±5° |
Thickness | 570±50(um) |
Light Transmittance | ≥60%±5% |
Sun protection film | |
Type | sun protection film |
Ultraviolet blocking rate | 100% |
infrared blocking rate | 96.9% |
Thickness | 0.1mm |
Light Transmittance | 67.3% |
Applications
KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer founded in 2006, located in Shenzhen, China.
2. What’s your MOQ for the PCAP Touch Monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the PCAP Touch Monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
4. Can you produce the PCAP Touch Monitor according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
