17 Inch Infrared Touch Monitor 1280x1024 Resolution IP65 Waterproof
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Hardness | 7H | Light Transmittance | 90% |
|---|---|---|---|
| Support System | XP,WIN7,WIN8,WIN10,Linux,Android | Mount Interface | VESA 75mm And 100mm |
| Suggested Resolution | 1280*1024 @ 60Hz | Contrast Ratio (Typ.) | 1000:1 |
| Operating Temp. | 0～50°C | Storage Temp. | -20～60°C |
| High Light | UL IR Touch Monitor,1280x1024 Infrared Touch Monitor,Infrared Touch Monitor IP65 Waterproof | ||
Product Description

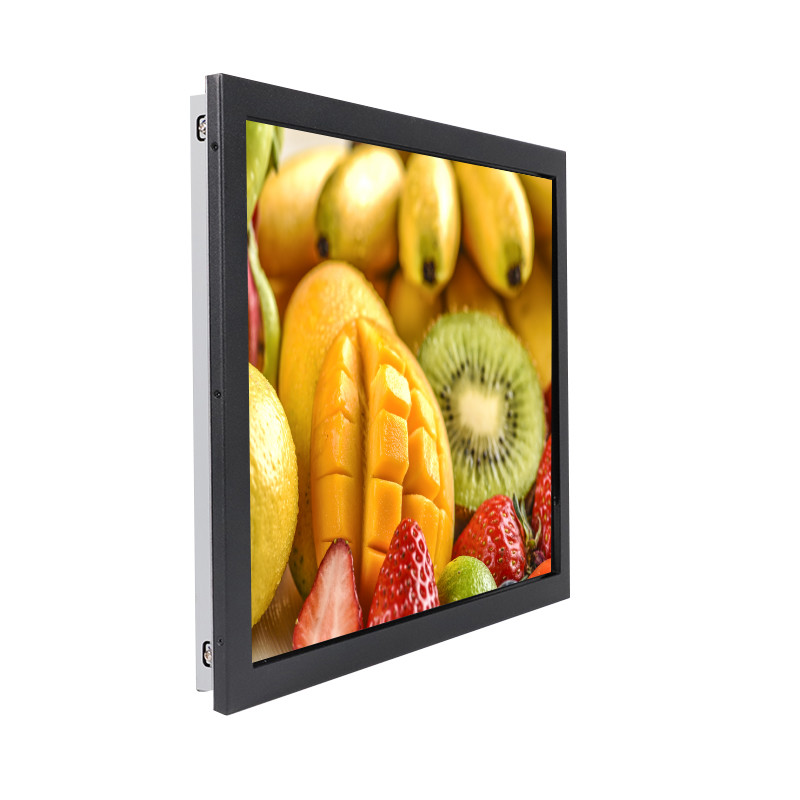

17 Inch IR Touch Monitor 1280x1024 Resolution IP65 Waterproof
Infrared Touch Monitor Main Features
IR touch monitors come with high durability, high accuracy, and multi-touch support. This 17 inch IR touch monitor is highly durable and can withstand harsh environments. It is an ideal choice for indoor and outdoor applications. Also, with our professional R&D engineers, OEM and ODM services can be offered to meet customer’s individual requirements.
Infrared Touch Monitor Specifications
| Complete Machine | ||
| Model No. | KOT-0170U-IR3W(KOT-170P-021) | |
| Series | OT | |
| Display Type | 5:4 Ratio 17" TFT-LCD,LED backlight | |
| Active Area | 337.3*270.3(mm) | |
| Monitor Dimensions (W*H*D) | 381*313*52(mm) | |
| Support Colors | 16.7M | |
| Response Time (Typ.) | 5ms | |
| Contrast Ratio (Typ.) | 1000:1 | |
| Video Input | VGA/DVI | |
| Frequency (H/V) | 30～80KHz / 60～75Hz | |
| Power Supply | Type: External brick | |
| Display voltage: DC 12V±5% | ||
| Input (line) voltage: 100-240 VAC, 50-60 Hz | ||
| Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤20W | |
| Mount Interface | 1.VESA 75mm and 100mm | |
| 2.Mount bracket, horizontal or vertical mount | ||
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
| Touch Screen | ||
| Touch Type | 17" Infrared touch screen | |
| Touch input | USB | |
| Active Area | 339*271(mm) | |
| Thickness | 9±1(mm) | |
| Touch Test | ≥50,000,000 times | |
| Input Voltage | DC 5V±5% | |
Industrial Touch Monitor Applications
IR Touch Monitor are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, subways, railway stations, control and operation systems, airports, entertainments, etc.
Why choose us?
1. Quality products: All our products have passed strict quality inspection by the quality department before shipment.
2. Competitive pricing: With a strong supply chain, our products’ prices are very competitive.
3. Timely delivery: We have raw materials in stock all year round, the goods can be produced and sent out quickly.
4. Responsive Customer Service: Professional after-sales team at any time to provide services to customers.
Service:
1. After-sales Service: For the user questions or machine fault, we will arrange engineer provide remote-control technical support and maintenance services for you at any time.
2. Product Quality Assurance: Our products had gone through authoritative evaluation, approves CE, RoHS certification, and strict test before shipment.
3. After-sales Service Team: The after-sales service center is equipped with a professional technical service team with abundant experience in maintenance and support.
FAQ
1. Can you produce the IR Touch Monitor according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
2. What is your payment method?
We can accept T/T, Western Union, Paypal, Credit card, and Alipay.(L/C can be negotiable.)
3. What is your delivery time for the infrared touch screen frame ?
3-5 work days for inventory orders, 7-15 business days for bulk production.
